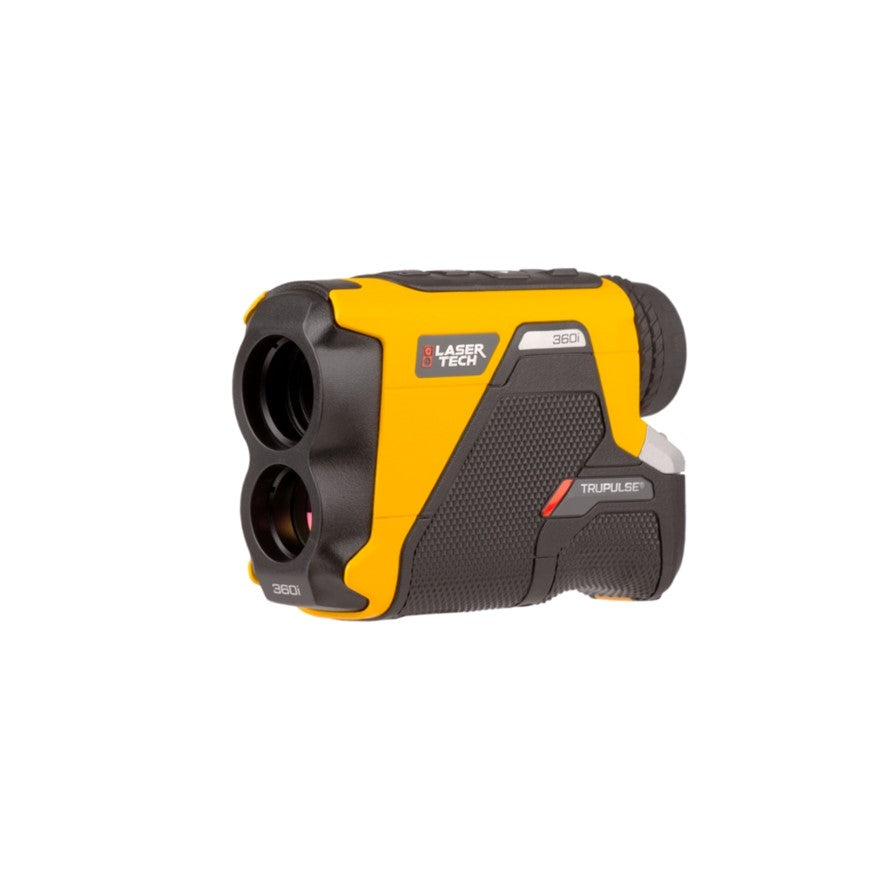

TruPulse 360i Laser Rangefinder
TruPulse 360i Laser Rangefinder
Couldn't load pickup availability
The TruPulse 360i fuses a tough, highly accurate, and intuitive next-generation rangefinder design with our patented TruVector 360° Compass Technology, enriching your laser measurements with azimuth data.
Features:
Measurement
- Provides measurement capability with distance, azimuth & inclination values.
TruTargeting
- Faster acquisition, greater accuracy with physical, visual and audible feedback on target acquired means confidence, efficiency. and greater safety in the field.
Accuracy (Range)
- Range accuracy, can achieve 10cm accuracy when higher accuracy jobs demand nothing less.
Accuracy (Tilt Inclination)
- More Precise Tilt Accuracy: 2.5X more precise tilt measurement (0.1° vs. 0.25°)
Accuracy (Compass)
- Confidence in repeatable azimuth measurement; less than 1 Degree.
LTI TruVector 360° Compass Technology®
- Produces accurate and repeatable Azimuth (AZ) results regardless of the tilt or pitch used when aiming the laser
- Intuitively recognizes conditions that will affect the reliability of the compass accuracy and prompts you to recalibrate
- Calibration is easily done with a simple field routine that can be completed in less than a minute
Targeting Mode
- Advanced Targeting Modes (Closest, Farthest, Continuous and Filter)
Ergonomics
- Easy to hold and operate with rubberized grips and tactile button feedback
Rugged
- Withstands harsh conditions with rugged, waterproof, dustproof housing. designed with a strong magnesium chassis and rubber-armored aluminum housing for extra durability. Holds up to everyday uses under any conditions.
On Board Calculations
- Auto calculates horizontal distance, vertical distance, height and 3D missing line values; inclination Percent Slope
Optics/Display
- The new Ultra-Bright Display has five brightness settings and works in any lighting condition. Our enhanced optical designs provides 80% light transmission, which simply means you will be able to see with greater clarity and bring smaller hard to see objects into focus.
Communicates with multiple platforms
- Bluetooth Dual Mode: BLE and Classic BT options; Android, iOS & Windows Compatible
User Experience
- Intuitive User Interface and workflows with an icon driven display to provide 7 onboard measurement solutions.
Specifications:
| Measures Azimuth with TruVector 360° Compass Technology |
Yes |
| Calculates SD, HD, VD and INC between two remote points | Yes, plus AZ |
| Distance Accuracy to Typical Targets | +/- 10 cm |
| Distance Accuracy to Very Distant & Weak Targets | +/- 20 cm |
| Inclination Accuracy | +/- 0.1° Typical |
| Azimuth Accuracy | +/- 1° Typical |
| Max Range to Reflective Targets | 2500m |
| Max Range to Non-Reflective Targets | 1000m |
| Bluetooth® Com Port | ios & android |
| Scope Magnification / In-Scope Display Type | 5x / LCD |
| In-Scope Field of View | 100m @ 915m away |
| Battery Type (8 hrs. of continuous use) | 2x AA |
| Waterproof / Environmental | Yes / IP67 |
| Temperature | -20° to 60° C |
| Size | 11.8 x 4.3 x 8.8 cm |
| Weight | 382.6 g |
Trupulse 360i Laser Rangefinder pdf brochure
