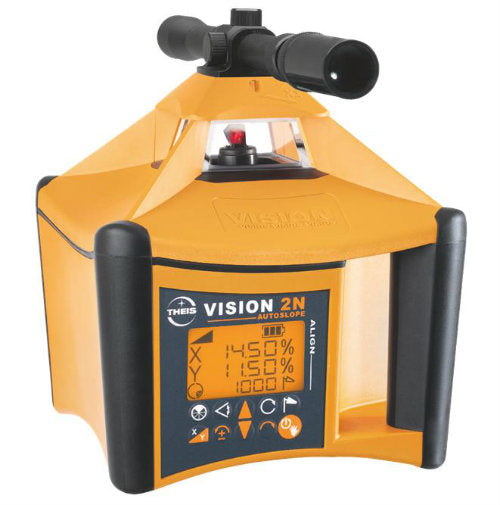

Theis Vision 2NA Dual Grade Auto Align Laser

Horizontal / Vertical Dual Grade Laser with Aligning Function

For genuine professionals who understand the savings made on the larger construction worksites.

The Theis 2NA Auto slope high power grade laser is suitable for horizontal and vertical application. automatic target capture function available in the above modes. Made in Germany.

Features:

• Simple to operate and very fast target acquisition
• Automatic slope adjustment up to +/- 15%
• Automatic alignment function : Search range up to 9°
• Continous tracking of the laser beam when there is a change in the receiver position
• Tracking range > 80m (in favourable conditions, up to 200m possible)
• Working range with receiver up to 1500m diameter

Applications: Alignment work Slope determination Gardening and landscaping Structural and civil engineering Road construction

	Align -Horizontal   Automatic slope adjustment in one or two axis even without detector Permanent target monitoring and tracking Determination of intermediate points possible with 2nd receiver
	Align -Vertical   Automatic target acqusition with alignment Permanent target monitoring and tracking Determination of intermediate points possible with 2nd receiver

	Supplied with: Vision 2NA Vision Laser TE 90 Align Receiver Scope to suit Charger Protective case User guide
Optional extras:
FB-V Radio Remote Control	Metor Receiver
Theis Vision 2N Dual Grade Auto Align Laser pdf brochure
