Spectra Precision LR50/LR50W Machine Display Receiver
Spectra Precision LR50/LR50W Machine Display Receiver

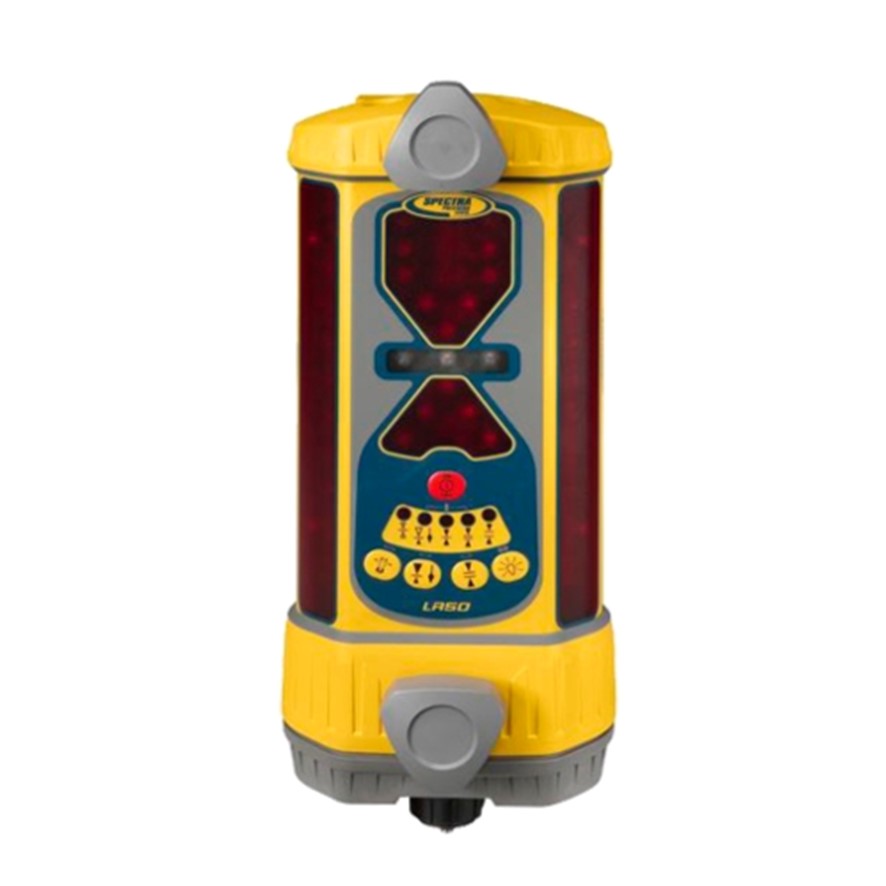

Spectra Precision LR50 & LR50W Machine Display Receivers with Linear Display / Control and Automatic Plumb Indicator
The Spectra Precision LR50 & LR50W Laser Machine Display Receivers are designed to be used as stand-alone display receivers on grading and excavating equipment including dozers, excavators, backhoes, scrapers and box blades.
The easy to use LR50 & LR50W feature versatile 360 degree laser reception and work with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50/LR50W receivers withstand all weather environments. Internal isolating shock mounts protect the electronics.
Features:
- Built-in blade tilt indicator helps the operators keep thew blade level for increased accuracy and productivity.
- Center On-grade provides an equal amount of grade information above and below on-grade: use on dozers, graders, scrapers and box blades.
- Offset on-grade for productive excavation provides additional above grade information for less undercuts.
- Built-in plumb indicator for fast, accurate grade checking for excavators and backhoes.
- Up to six channels of grade information plus directional out-of-laser beam indicators.
- Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility.
- Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions.
 |
 |
| Specifications | |
| Number of Display Channels | 5 channel display, 6 channel display in excavating mode |
| Accuracy: centre on grade mode (grading) | Fine: 5mm, Standard: 10mm, Wide: 20mm |
| Accuracy: offset on grade mode (excavating) | Fine: 12mm, Standard: 25mm, Wide: 50mm |
| ACE - Angle Compensation Mode | N/A |
| Blade-Tilt accuracy | +/- 0.5°, +/- 1.5°, +/- 2.5° |
| Plumb-swing accuracy | +/- 0.5°, +/- 1.5°, +/- 2.5° |
| Vertical reception | 171mm |
| LED battery life | |
| Alkaline bright/dim | 45/60 hours |
| Wireless with remote on | 20/30 hours |
| Ni-MH bright/dim | 30/45 hours |
| Wireless with remote on | 15/20 hours |
| Receiver warranty | 2 years |
Spectra Precision LR50 Machine Display Receiver pdf brochure
