Pro Shot AS2 Magnum with Androtec Metor MTR-90GR
Pro Shot AS2 Magnum with Androtec Metor MTR-90GR

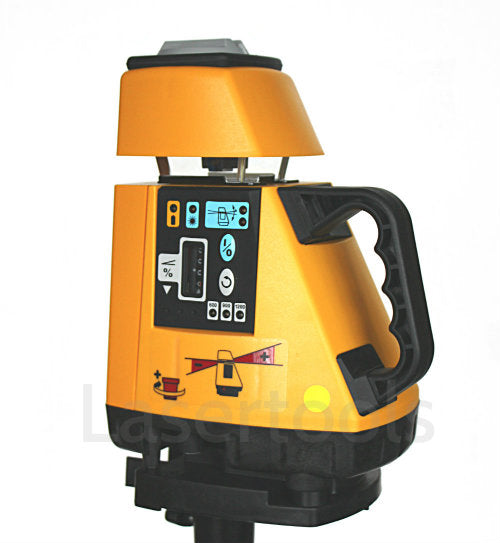

The Pro Shot AS2 Magnum Single Grade Laser brings unmatched value and increased functionality to grading, excavating, sewer line & drainage contractors. Made in USA.
Features
- Horizontal Fully Automatic Self-Levelling – servo driven
- Automatic Dial-In Grade (Single Axis) – up to 25% in 0.01% increments (1/100 of a %). Just set your desired grade in the -andS the AS2m will automatically drive the laser line to that slope. X-axis remains self-levelling
- Anti-Drift Height Alert Indicator – stops rotation if laser height is adjusted once set-up is complete
- Low Battery Indicator
- Compound Slope Dual Grade Adapter – gives the AS2m the functionality of a dual grade laser.
| Specifications | |
| Laser Range | up to 1000m diameter |
| Accuracy | ±10 arc sec. ± 1.5 mm per 30m |
| Slope Capability | 0 – 25% Single Axis, in 01% increments |
| Rotation Coverage, Speed | 360° @ 600, 900, 1200 rpm (selectable) |
| Compound Slope Adapter | Standard |
| Machine Control Compatible | Yes, Including high speed rotation |
| Warranty | 3 Year Factory Defects Coverage |
| Power source, runtime | 4 Alkaline C- cells @ 80 hours continuous |
| Rechargeable Battery, runtime | Optional NiMh kit @ 55 hours continuous |
| Magnum Laser Classification | CDRH IIIa and IEC Class 3 |
| Dust and Water Sealed | To international standard IP56 |
| Operating Temperature | -20° C to +60° C |
For more information on the Androtec Metor MTR-90RG Receiver click here
