Pro Shot AS2 Magnum with R9 Receiver
Pro Shot AS2 Magnum with R9 Receiver

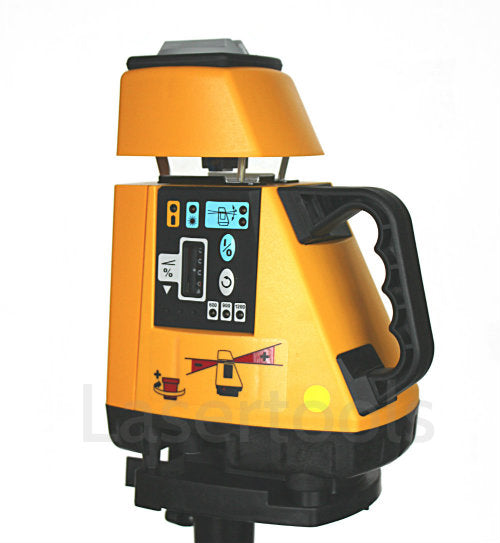

The Pro Shot AS2 Magnum Single Grade Laser brings unmatched value and increased functionality to grading, excavating, sewer line & drainage contractors. Made in USA.
Features
- Horizontal Fully Automatic Self-Levelling – servo driven
- Automatic Dial-In Grade (Single Axis) – up to 25% in 0.01% increments (1/100 of a %). Just set your desired grade and the AS2m will automatically drive the laser line to that slope. X-axis remains self-levelling
- Anti-Drift Height Alert Indicator – stops rotation if laser height is adjusted once set-up is complete
- Low Battery Indicator
- Compound Slope Dual Grade Adapter – gives the AS2m the functionality of a dual grade laser.
| Specifications | |
| Laser Range | up to 1000m diameter |
| Accuracy | ±10 arc sec. ± 1.5 mm per 30m |
| Slope Capability | 0 – 25% Single Axis, in 01% increments |
| Rotation Coverage, Speed | 360° @ 600, 900, 1200 rpm (selectable) |
| Compound Slope Adapter | Standard |
| Machine Control Compatible | Yes, Including high speed rotation |
| Warranty | 3 Year Factory Defects Coverage |
| Power source, runtime | 4 Alkaline C- cells @ 80 hours continuous |
| Rechargeable Battery, runtime | Optional NiMh kit @ 55 hours continuous |
| Magnum Laser Classification | CDRH IIIa and IEC Class 3 |
| Dust and Water Sealed | To international standard IP56 |
| Operating Temperature | -20° C to +60° C |
Pro Shot R9 Laser Receiver
It works with all Pro Shot laser transmitters, and most other brands of rotating lasers on the market. Grade information is conveyed via a LCD front panel display, a LED display on its backside, and audio tones. The visual display now provides 5 channels of information, high, high fine, on grade, low fine, and low. The user can select between three operating accuracies, ultra-fine (±1/64 inch), standard (±1/16 inch), and coarse (±1/8 inch). The R9 provides between 500 and 1000 feet (152m to 305m) of working range depending upon which Pro Shot transmitter it is paired with. The receiver runs for approximately 60 hours on a 9V alkaline battery.
| Specifications | |
| Reception Height | 50mm |
| Reception Angle | 120 degrees |
| Fine Accuracy Selection | +/-1.0mm |
| Standard Accuracy Selection | +/-1.6mm |
| Coarse Accuracy Selection | +/-3.2mm |
| Display | 5 Channel LCD front, 3 Channel LED rear |
| Speaker Volume | high, low, off |
| Battery Power | 1 x 9V Alkaline battery |
| Battery Life | 60 hours |
For more information on the R9 Receiver click here
