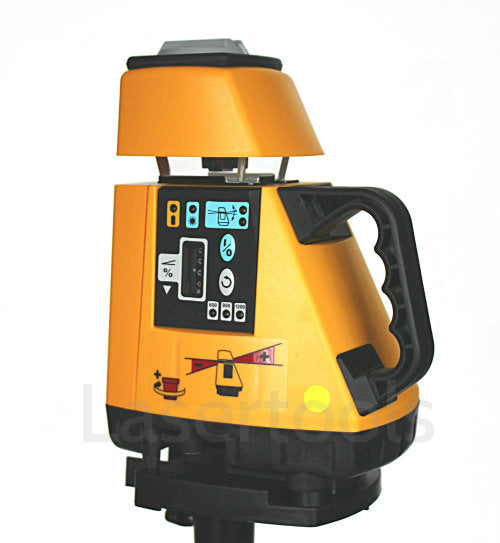

Pro Shot AS2 Magnum with R8 Receiver
Pro Shot AS2 Magnum with R8 Receiver
Pro Shot AS2 Magnum Single Grade Laser
Pro Shot AS2 Magnum - Greater Range - Greater Accuracy: The Pro-Shot AS2m brings unmatched value and increased functionality to grading, excavating, sewer line & drainage contractors. Made in USA.
Features
- Horizontal Fully Automatic Self-Levelling – servo driven
- Automatic Dial-In Grade (Single Axis) – up to 25% in 0.01% increments (1/100 of a %). Just set your desired grade in the -andS the AS2m will automatically drive the laser line to that slope. X-axis remains self-levelling
- Anti-Drift Height Alert Indicator – stops rotation if laser height is adjusted once set-up is complete
- Low Battery Indicator
- Compound Slope Dual Grade Adapter – gives the AS2m the functionality of a dual grade laser.
Specifications | |
Working Range | 610m+ diameter |
Accuracy | ±1.5mm @ 30M |
Levelling Type | Servo motor ± 4 degrees |
Batteries | 4 x C cell |
Operating time | 70 hrs (Alkaline), 55 hrs (optional NiMH charge kit) |
Rotation Speeds | 600, 900 & 1200rpm |
Environmental | Water & dust proof: IP55 |
Operating Temperature | -20º to 60ºC |
Slope Capability | Single axis fully auto dial-in up to 25% in 0.01% increments |
R8 Laser Receiver
A general multi purpose all rounder Laser Receiver. Patented detection technology and field proven performance with a 2-year warranty
Performance | Patented technology provides stable and accurate grade information over the entire jobsite. |
Versatile | Works with all rotating lasers. 3 accuracy levels - tolerances to meet your jobsite needs. |
Bright, Multi-Colour LED's | Provide a visual indication of grade reference. Easy to see over long distances. |
Strobe Light Rejection Filter | Eliminates false readings from jobsite strobe lights. |
LCD Displays | Front and back - instant easy to see grade inform |
Waterproof and Dustproof | 100% to IP67 standard - Dunk it, scrub it, hose it off - it can take it. |
Tough | We expect it to be dropped, kicked, and splattered with concrete. It's designed to take the abuse of any jobsite. |
2-Year Warranty | If it breaks within 2 years - we will fix or replace it - "No Excuses". |
