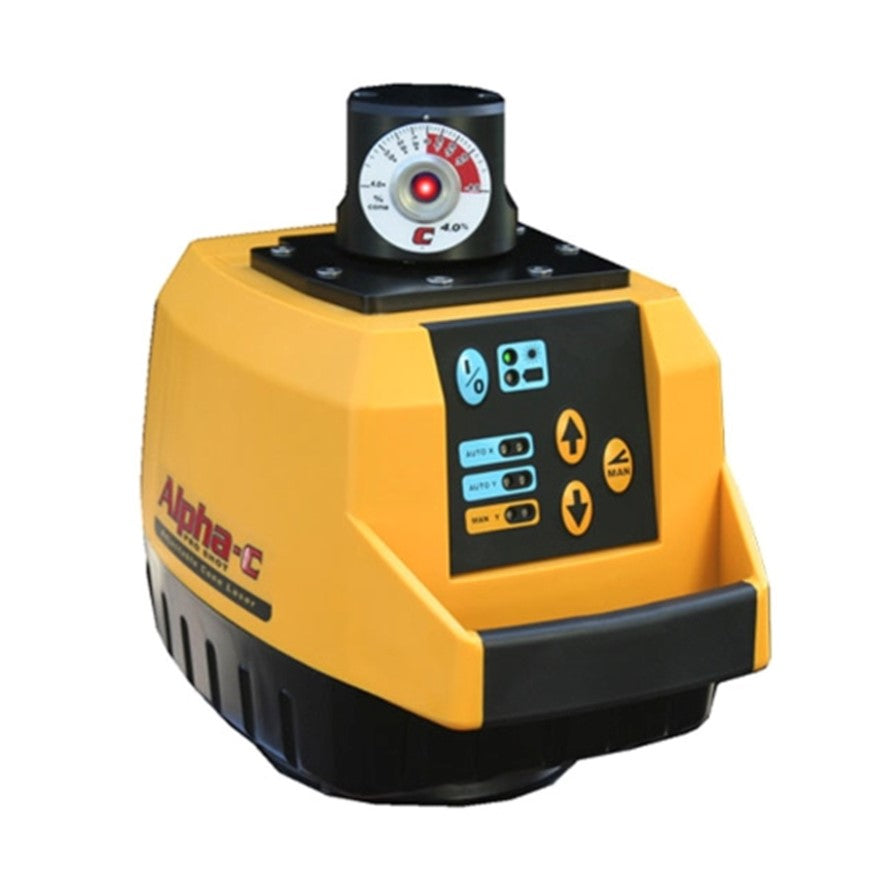

Pro Shot Alpha-C Cone Laser

Pro Shot Alpha-C Cone Laser

For price and availability please email us sales@gsrlasertools.com.au

Pro Shot Alpha-C is a unique cone laser tool for drainage, collection and precise curved slopes. It has all the durability and performance of the standard Alpha, plus a custom-made precision cone rotor head.  Our engineering team hand builds, tests and calibrates each Alpha C, assuring its performance to industry leading standards. This unique, adjustable, cone projecting head lets you set-up with the laser at the high point, or low point and project a conical sloping reference of laser light.

The Alpha C can project up to a 4% sloped cone either up or down, with increments of 1/4%.  An optional version provides up to a 1.7% sloped cone reference, with even greater resolution to 1/10%.  The Alpha C is especially helpful for sports fields where a standard plane-only laser just won’t get the job done.  Some specific applications: Baseball fields; Running track corners and their infield “D” zones; Containment areas around storage tanks. The Alpha-c can also operate as a precision laser level by installing the included level-only cap.

Features:
- Excellent for baseball fields
- Running tracks and their infield "D" zones
- Storage tank collection areas
- Fast Servo Levelling
- 360° Rotation



    The Proshot Alpha C laser is built amazingly tough to handle real world use and abuse. By using over engineered levelling motors and kevlar drive components the factory are able to back this laser up by providing it's customers with their Guardian Knockdown warranty.

    Fully Self Levelling in Cone Grading Mode
    For Single grading applications such as driveways, drainage, carparks - the Alpha C can be driven to match any slope up top ±8%. Unlike other lasers, once a grade has been set the Alpha's self-levelling function is still operating - If the laser is knocked, or temperature / vibration has caused a height variation the laser is still able to compensate.

    For Cone Grading applications such as sports fields, drainage and carparks - The Alpha C has two versions available depending on the accuracy and cone grade range required - a ±1.7% version with a finer setting accuracy for  precision work and a ± 4.0% version for larger cone grades.

    Machine Control Compatible
    For laser guided machine control applications the Alpha has got you covered. A high speed 1200RPM mode has been built in that will give you twice as many laser strikes per second than other lasers in this class. What does this mean for the operator? Smoother control and higher accuracy.
    Specifications:
     Range with R9 Receiver 610m dia / 305m rad
    Horizontal Accuracy +/- 10 arc sec (+/- 1.5 mm per 30m)
    Cone Slope Capability +/-  4%, 1/4 % Increments
    High Resolution Version +/- 1.7%, 1/10 % Increments
    Leveling Technology Range Servo Motor Self Leveling  +/- 5°
    Height Alert Normally active, can be disabled
    Slope Matching / Range Single Axis, X-Axis Self Leveled  8%
    Rotation Coverage/ Speed 360°,  500 rpm
    Machine Control Compatible Yes
    Power source / Life 4x C- cells at 75 hours (alkaline)
    Rechargeable Parts Optional NiMh kit at 48 hours
    Laser Beam Type Visible 650nm
    Alpha Laser Classification CDRH class IIIa, IEC class 2
    Dust and Water Sealed IP56
    Operating Temperature -20° C to +60° C
    Made in California, USA


    Pro Shot Alpha-C pdf brochure
