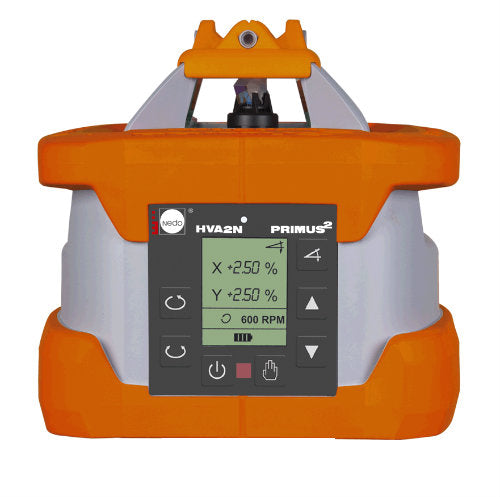

Nedo Primus2 HVA2N Auto Horizontal Dual Slope & Vertical Laser
Nedo Primus2 HVA2N Auto Horizontal Dual Slope & Vertical Laser
The fully automatic horizontal/vertical dual slope laser with Auto Align function in horizontal & vertical position with tilt monitoring. The all-rounder for professionals. German made, able to handle mine and any construction site.
Features:
- Fully automatic dual slope laser +/-10%.
- Designed for both INTERNAL & EXTERNAL high accuracy applications.
- Auto Align function: Automatic alignment of the laser beam to the zero mark on the receiver.
- Tilt Control - continuously monitoring Tilt mode.
- SCAN function and DOT mode.
- UPWARDS plumb dot.
- Robust, motor powered levelling.
- Direct grade entry for the X and Y axes slope values, once input, are stored upon switch-off.
- Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
- Laser class 2 with bright beam technology™ - use safely on all Australian building sites.
- Optional class 3 available.
- Large clear display showing inclination, rotation speed, battery level, etc.
- Rotor protection made of break proof glass.
- Highly accurate even under the toughest conditions.
- 3 Year Australian warranty.
- Commander Receiver with heavy duty clamps - is a receiver and remote control all in ONE UNIT.
- Australian Calibration Certificate.
- Two power supplies (A) rechargeable NiMH and (B) alkaline battery 4x 1.5V battery tray.
- Quick Fix Adapter included.
|
|
| At the push of a button, the laser plane automatically aligns with the Commander2 Receiver in the vertical or horizontal position. | |
| Specifications | |
| Level | +/- 0.5mm/10m |
| Self-levelling range | +/- 5° |
| Accuracy | +/- 0.015% Slope function |
| Direct entry Slopes into two Axis | +/- 10% |
| Laser Class | 2 (can be used on all Australian sites) Optional Class 3 available |
| Rotational speeds | 10, 60, 300 and 600rpm |
| SCAN angles | 0, 5, 10, and 15 degrees |
| Working range of remote control | 150m dia |
| Working range of Auto Align | 50m dia |
| Working range with Commander2 receiver | 700m dia |
| COMMANDER2 Receiver & Remote all in ONE unit | |
|
Features:
|
| Specifications | |
| Accuracy | switchable, +/-0.5mm, +/-1.0mm, +/-2.0mm, +/-4.0mm |
| Lenght of detector field | 70mm |
| Working range | Ø 700m dia |
| Protection class | IP66 |
| Operating Temperature | -20°C to +50°C |
| Power supply | 3 x 1.5V batteries (AA) or rechargeable batteries NiMH |
| Operation duration | approx. 100 hours |
 |
Included in Package:
|
| Telescopic Sight N-Scope (optional) | |
 |
Telescopic sight with laser sighting mechanism for exact axis alignment. Provides extremely accurate alignment of the laser AXIS over long distances. Can be attached without tools in a minute.
|
