MCE LS230R.E Laser Grader
MCE LS230R.E Laser Grader

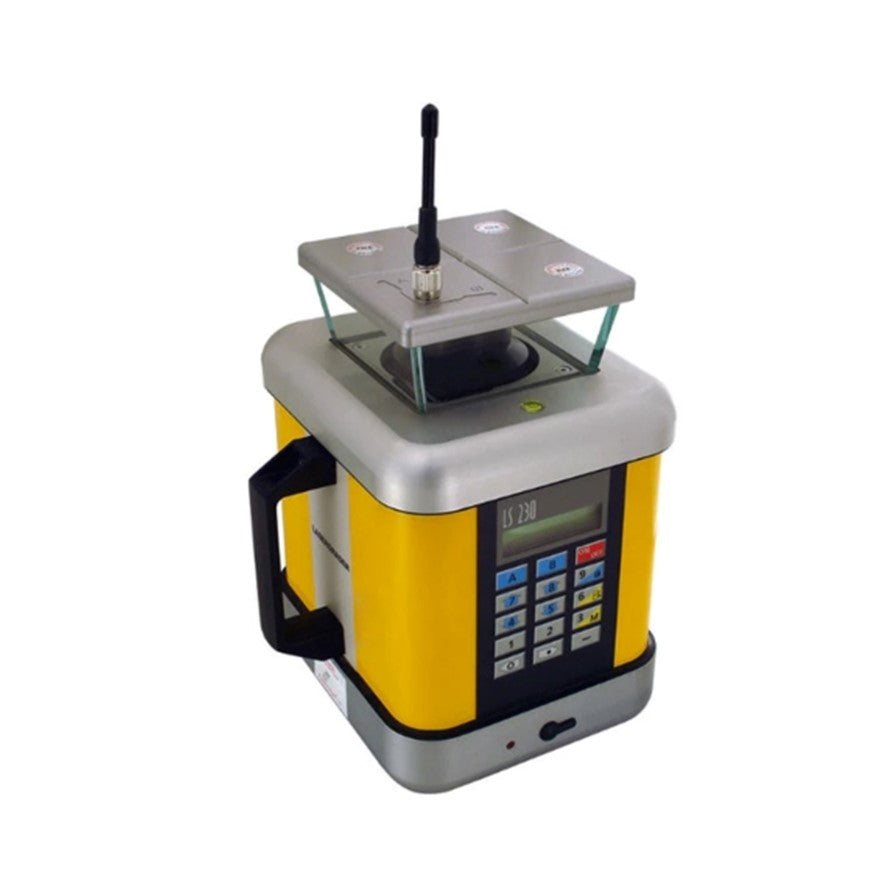

MCE LS 230R.E Laser Grader Long Range Agricultural Dual Grade Laser with Radio Remote Control
Looking for a proven, reliable and robust dual grade long range laser? A laser you can count on to increase efficiency? A laser that is site tough? The MCE LS 230R.E laser grader meets all of your job site needs, from layout to grade control. Tried the rest, now it's time for the best. One off the MCE lasers especially suited for agricultural applications. Range to 1.4km.
Key Features:
- Long range agricultural dual grade laser
- Industry leading radio remote control range 700meters (radius)
- Long operating range 750 meters (radius)
- Heavy duty military style carry case
- Temperature compensated for accurate grade control
- +20% / -5% grade in both axis
- 100% Australian made
- Fully waterproof and submersible in water
Applications:
 |
 |
| Earth Moving | Land Levelling |
|
|
| Road Construction | Site Works |
Options available:
- Coned rotating head
- Dual or single Grade
- Vertical axis or visible/invisible beam
- Tripods are available to 4.5m
- Extra heavy duty elevator tripods to 4.6m are available on special order only
| Specifications | |
| Laser Unit | |
| Laser type | 635nm red laser diode |
| Laser power | 3 mW nominal |
| Laser class | Class 2M |
| Accuracy | +/- 10 arc seconds |
| Grade range | -5% to +20% |
| Self-levelling range | +/- 7.5% |
| Working range | 700m radius, 1.4km diameter (tested with laserguide sensor) |
| Rotating head speed | 200, 300, 400, 500 or 600rpm |
| External power source | 12 - 24 V DC |
| Internal power source | Rechargeable Ni-MH battery |
| Operating time | 40 hrs |
| Charging input | 240 VAC - 12-24 V DC |
| Charging time | 12 hrs approx. |
| Dimensions | 270 x 175 x 200mm |
| Weight | 8.25 kg |
| Control | |
| Battery type | 9 V battery |
| Operating range | 700m (conditions dependent) |
| Dimensions | 250 x 100 x 38mm (incl antenna) |
| Weight | 0.7kg |
