MCE Intrinsically Safe Alignment Laser LD25/35
MCE Intrinsically Safe Alignment Laser LD25/35
|

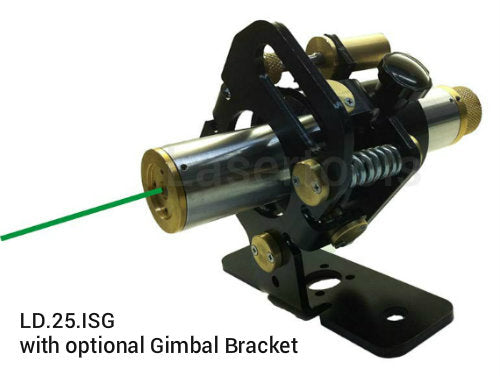

MCE LD25 & 35 Series Intrinsically Safe Lasers The LD.25.IS, LD.35.IS and LD.35.ISG lasers enable accurate construction and alignment of tunnels where being driven by tunnel boring machines, drill and blast, pipe jack or conventional hand techniques. The units are intrinsically safe and therefore do not require explosion proof containment when working in gaseous environments such as methane/air mixtures. The units are waterproof, rugged and constructed from stainless steel and brass. The units are based on diode technology and powered by two ‘AA’ cells (LD.25.IS) or two ‘C’ cells (LD..35.IS & LD.35.ISG). When used with the MCE designed adjustable gimbal, the lasers are easily installed on tunnel walls and adjusted to a target. |
 |
|
Certification
| INTRINSICALLY SAFE |
| Explosion-proof containment not required. Works in Methane/Air mixtures. |
| Code: Ex ia I/IIC T3 IP55 |
| Code: Ex ia I/IIC T4 IP55 |
| IEC 600079-0 : 2011 |
| Edition: 6.0 |
| Electrical apparatus for explosive gas atmospheres |
| Part 0: General requirements |
| IEC 600079-11 : 2011 |
| Edition: 6.0 |
| Explosive atmospheres |
| Part 11: Equipment protection by intrinsic safety "i" |
| CERTIFICATE No: |
| IECEx SIM 13.0004 |
Applications:
- Mining
- Tunneling
- Industrial
- Safety
- Manufacturing
- Power Boring
| Specifications | LD.25.IS | LD.35.IS | LD.35.ISG |
| Length | 221mm | 230mm | 230mm |
| Diameter | 25mm | 38mm | 38mm |
| Weight | 510g with batteries | 890g with batteries | 890g with batteries |
| Power supply | 2 x AA cell batteries | 2 x C cell batteries | 2 x C cell batteries |
| Operating time | 50 hrs | 200 hrs | 60 hrs |
| Laser class | 2M | 2M | 2M |
| Operating range | 150m | 150m | 200m |
| Beam diameter at exit | 5mm | 5mm | 3mm |
Optional extras:
- Horizontal gimbal I/S
- Carry case
- Penta prism
