LTA Powerline Sheave Alignment System
LTA Powerline Sheave Alignment System

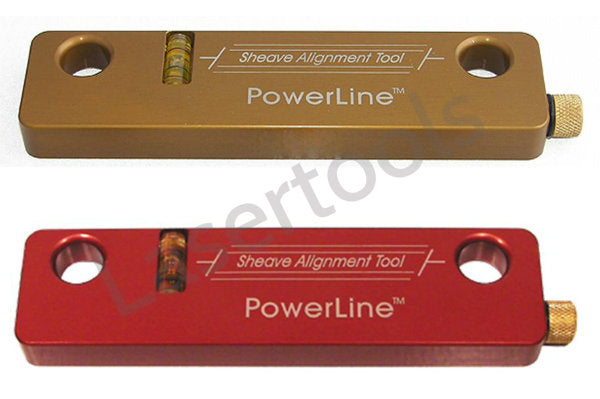

The LTA Powerline Pulley Alignment Tool projects a plane of laser light paralell with the face of drive and driven pulleys. Adjustable targets attach to the pulleys, intersect the laser beam and visually show any misalignment. With this "positive tracking" alignment adjustments can be made in "real time" by only one person.
Align Sheaves, belts, platforms, conveyors and soft motor mounts. Works with belt, gear and roller transmission system too. The flat laser line can also be used as a level layout reference.
Benefits:
- Minimise belt wear
- Less down time
- Quick and easy alignment checks
- Real time adjustment
- Adjust belt under normal load conditions
- Insure proper belt tension
- Positive tracking
| Specifications | |
| Laser Power L80 Red | Class II <1mw @ 635nm |
| Laser Power GL80 Green | Class II <1mw @ 532nm |
| Level Vial | 40 ARC Min |
| Beam Spread | 60" @ 3' (152cm @ 30cm) |
| Line Width | 1/16" @ 30" (0.158cm @ 76 cm) |
| Magnets | Nickel plated Rare Earth |
| Accuracy | 07° or over 7 times more than industry standards |
| Targets | Qty 3 - adjustable over 3/4" (1.9cm) |
| Target Dimension | 1 1/4"dia x 1" length (3.2cm x 2.5cm) |
| IP Rated | 67 |
| Dimension | 1 3/4" x 6 3/4" x 5/8" (4.5 x 17 x 1.6cm) |
| Housing/ Target | High grade hard anodised aluminium |
| Power | 2 x AAA Batteries (10 hrs) |
Available with Red or Green Laser
 |
 |
 |
 |
 |
 |
| Quickly identifies type of misalignment | 1) Powerline Alignment Tool 2) Adjustable Magnetic Targets 3) Belt Tension Gauges |
Included in Kit:
- 1 x Powerline Pulley Alignment tool
- 3 x Adjustable Magnetic Alignment Targets
- 1 x Foam filled Hard carrying case
- 2 x Belt tension Gauges
