LTA Dual Beam Laser with Tribrach Adapter
LTA Dual Beam Laser with Tribrach Adapter

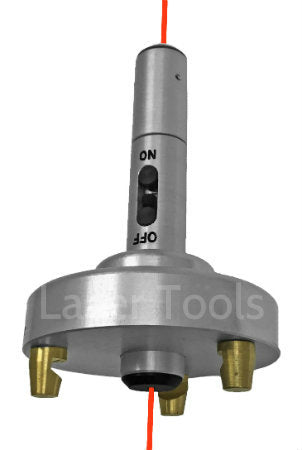

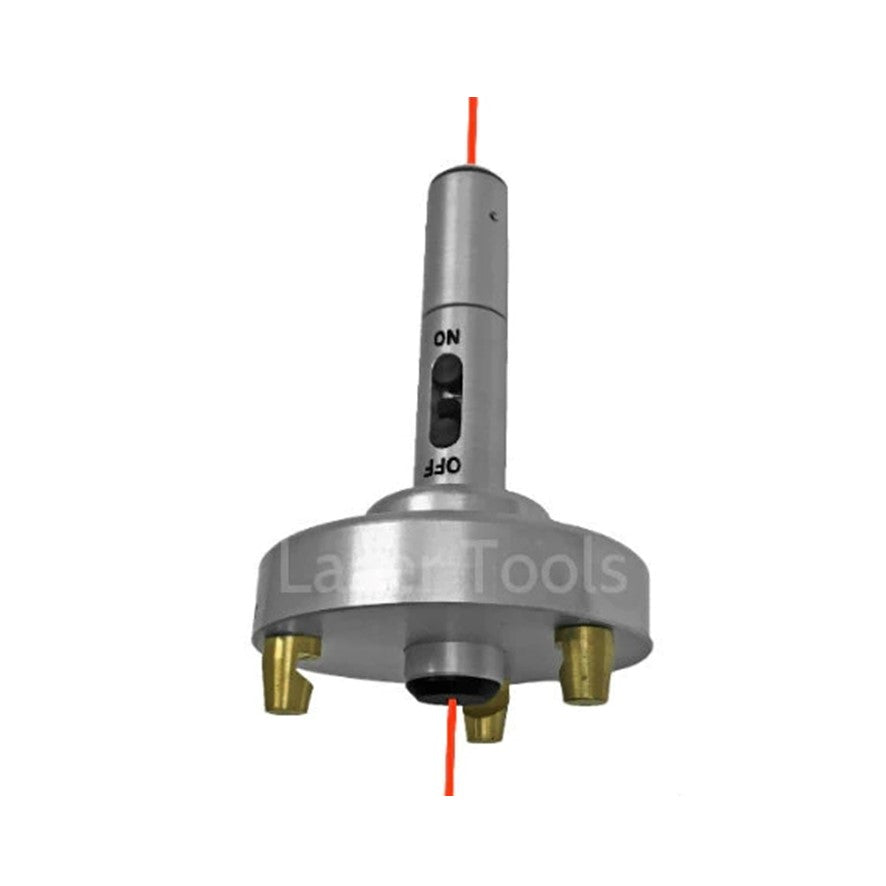

Dual Beam Plummet Laser with Tribrach Adapter
The Dual Beam red visible Laser Plummet enables you to set up over a point fast and easy.
The tribrach adapter is Leica / Wild type, fits into most common 3 claw tribrach's. Especially practical when an underground mining laser plummet needs to be swapped over to other survey stations.
Application:
- Industrial machine control
- Industrial process control
- Wheel alignment (Use with Adapter removed)
- Mining applications
- Building applications
- Research and education
| Specifications | |
| Laser Type | Visible Red Laser |
| Power output | 3 mW nominal |
| Beam Diameter | 3 mm at exit |
| Wave length | 635-650 nm |
| Input Voltage | 3x1.5V N size cells |
| Operating Time | 0.5 hrs cont. |
| Main Body | Aluminium |
| Dimension, Laser | 111 x 20 mm |
| Weight | 660 gr |
Optional Tribrach available please call or email us sales@gsrlasertools.com.au
Tribrach without Optical Plummet, Professional
