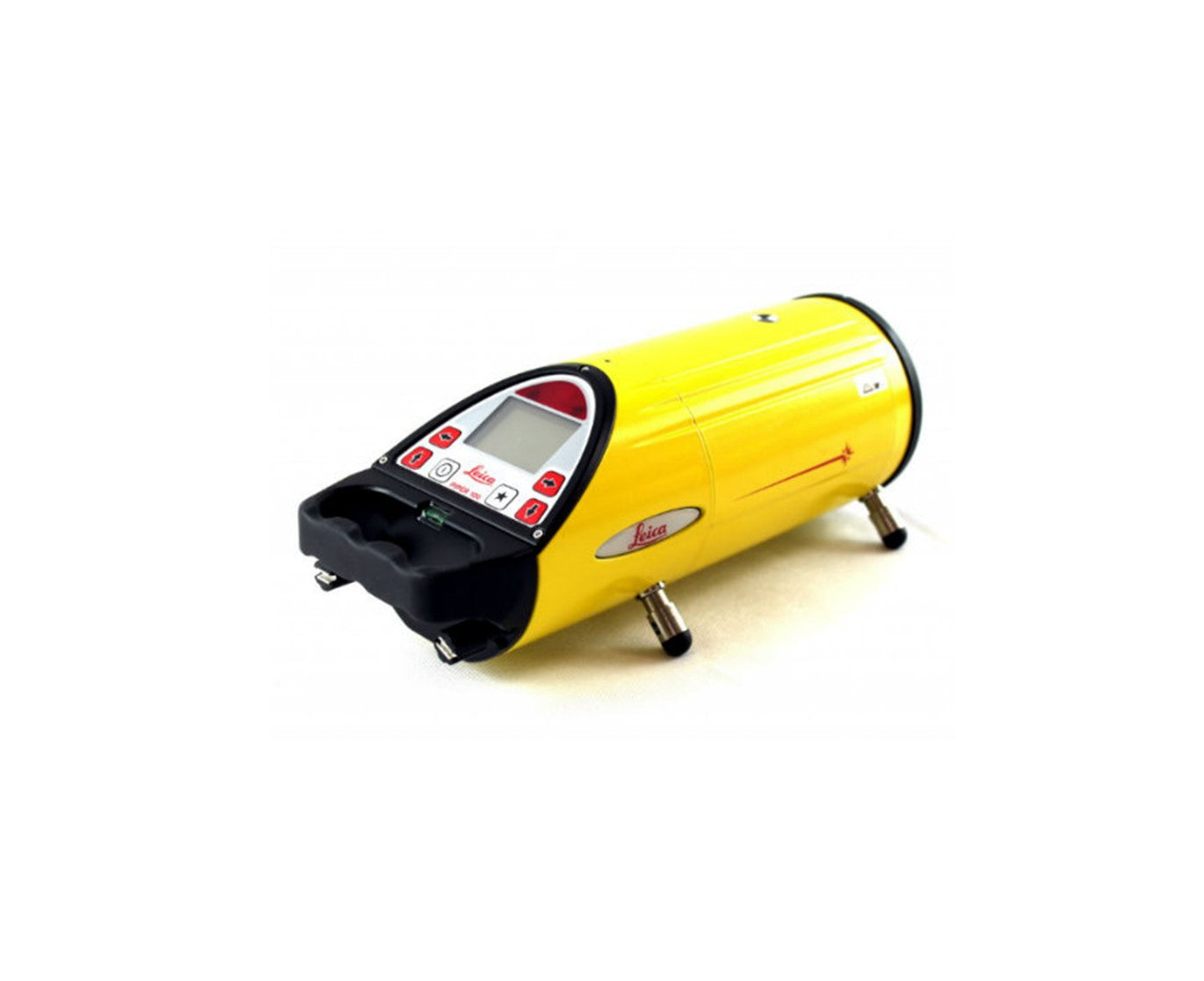

Leica Piper 100 Pipe Laser
Leica Piper 100 Pipe Laser
Powerful and compact, the Leica Piper is the only pipe laser that fits inside a 100 mm (four inch) pipe. It is built with solid cast-aluminum housings, and is loaded with features that will improve productivity and minimize downtime on the jobsite.
It is ideal anywhere line and grade is required. It has a large clear display that makes it easier for contractors to read grade, line position, battery status, and level indication. The intelligent battery monitors the amount of charge/discharge so that contractors always know how much battery life they have left. The Leica Piper’s bright, visible beam is focused to maintain its crisp, clear spot and size over long distances. Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range, and eliminates the need to tip the laser for steep slopes.
| Technical Specifications | |
| Beam | Highly visible red beam |
| Display | Large, easy to read LCD display |
| Alignmaster* | No |
| Line and Grade Locks | Yes |
| Wide Line Adjustment | Yes |
| Self-levelling | Over full range |
| Grade entry | Direct or by digit |
| Remote control | Yes, wireless |
| Housing | Rock solid metal |
| Battery pack | Rechargeable Lithium-Ion |
| Waterproof | 100% |
| Product Specifications | |
| Laser Diode | 635 nm (red) |
| Laser Output | Laser Output |
| Working Range | 200 m (650 ft) |
| Grade Range | -10 % to +25 % |
| Self-leveling Range | -15 % to +30 % |
| Line Movement | 6 m at 30 m (20 ft at 100 ft) |
| Battery* Lithium-Ion | 7.4 V/3.8 Ah |
| Operation/Charge | 40 h/4 h |
| Operating Temperature | -20° to +50° C (-4° to +122° F) |
| Dimensions (diameter x length) | 96 mm x 267 mm (3.8 in x 10.5 in) |
| Weight | 2 kg (4.4 lbs) |
| Construction | Cast aluminium |
| Seal | IPX8 |
| Wireless Remote Front, | up to 150 m (500 ft) |
| Back | up to 10 m (35 ft) |
Click here to download pdf brochure
