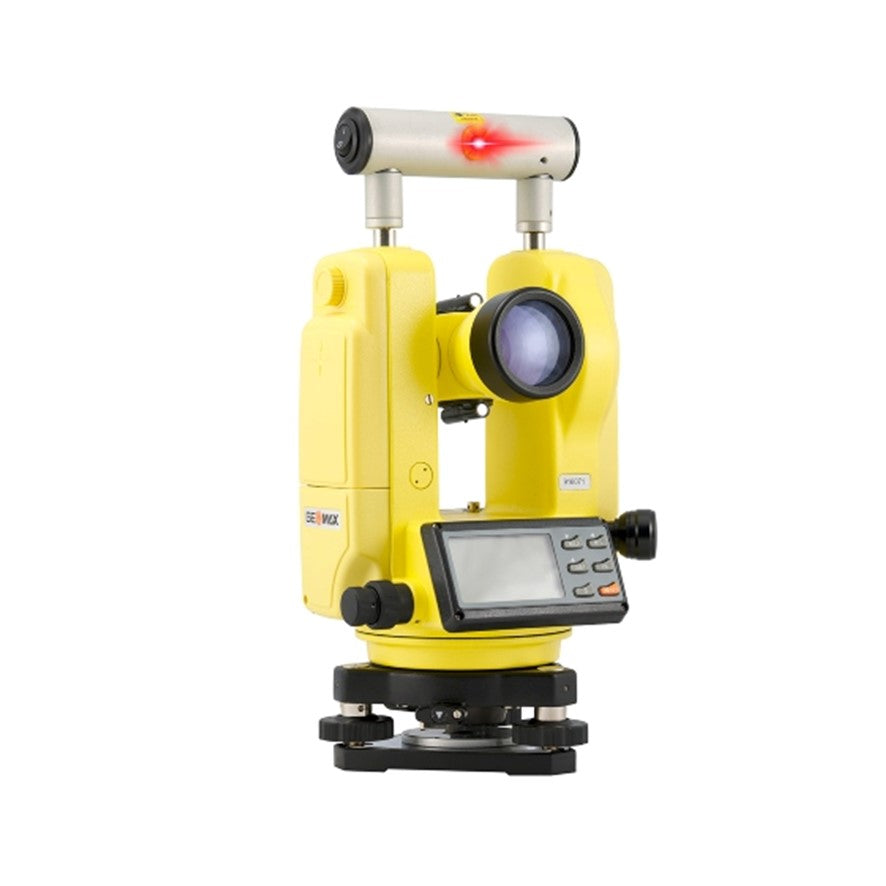

Geomax Fencing and Vineyard Laser Alignment Theodolite
Geomax Fencing and Vineyard Laser Alignment Theodolite
Regular price
$5,390.00 AUD
Regular price
Sale price
$5,390.00 AUD
Unit price
per
Couldn't load pickup availability

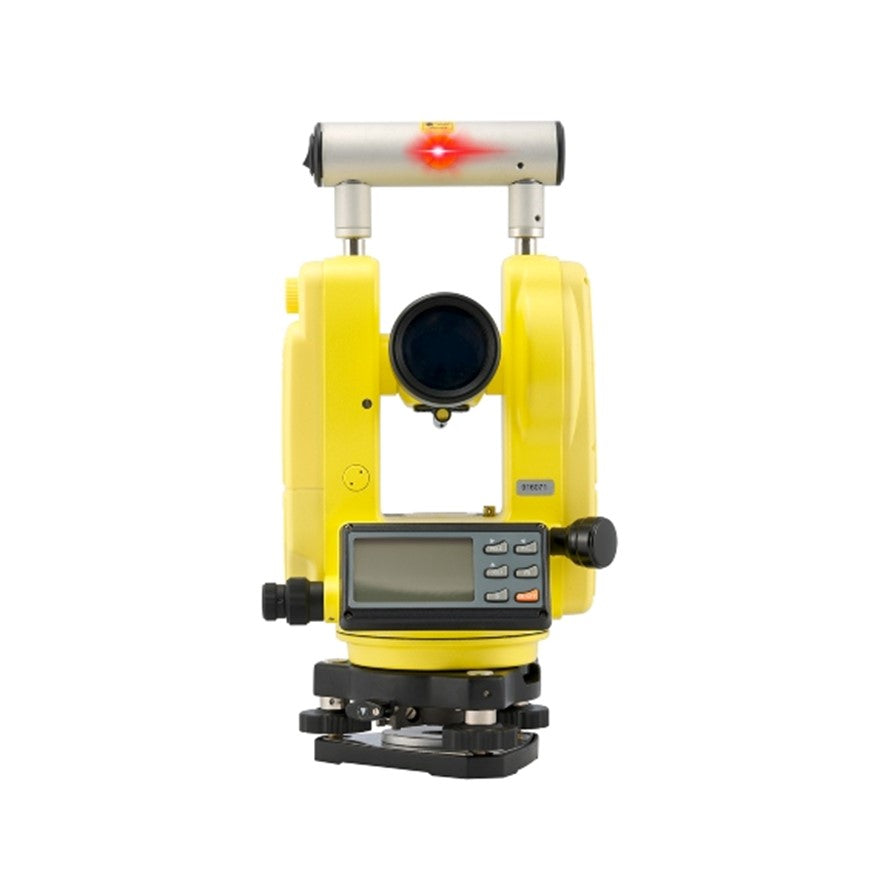

The Fencing Laser Theodolite combines the angle-measuring capabilities of a digital theodolite with a high-accuracy Alignment laser.
The integrated laser head is mounted to a highly accurate standard electronic Geomax Theodolite that is aligned to the optical Telescope axis, usage in both forward and reverse directions.
Vertical scanning beam allows for one person set-out or special applications like vineyards or fence lines.
Features:
- Laser Range 350 m to up to 500 m
- Easy to operate
- Optical plummet
- Two clear LCD displays
- Rechargeable and alkaline battery packs
- Horizontal angle can be set to zero from any point
- Resolution 1” or 5”
- High power rotating laser beam to use with receiver (Recommended: AndroTec Metor MTR-125 mm Receiver)
- Long range operating distance
- Ideal for vineyard and rural fencing contractors
Specifications:
| Precision | 2" |
| Display Resolution | 1" or 5" |
| Display Units | DEG (360° 00’ 00”), GON (400), MIL (6400), V / % |
| Compensator | Automatic vertical compensator, user set On/Off |
| Compensator working range | +/- 3' |
| Magnification | 30x |
| Objective aperture | 45mm |
| Minimum focusing distance | 1.35m |
| Stadia multiplication factor/constant | 100/0 |
| Laser Plummet | Visible laser point |
| Laser Plummet accuracy | 1.5 mm at 1.5 m instrument height |
| Operating temperature | -20° C ~ +50° C |
| Ingress Protection | IP54 (dust and water resistant) |
| Weight including battery & Tribrach | 4.5kg |
| Type of Battery | Rechargeable NiMH, replacement alkaline battery pack |
| Battery operating time | 36 hrs (without laser plummet) |
For full specifications and information on Geomax Theodolite click here
