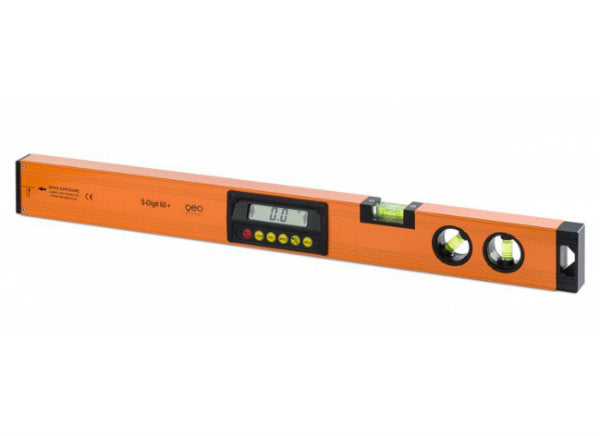

Geo Fennel's latest generation of inclinometers with a new enhanced tilt sensor. The S-Digital 60+ inclinometer combines a standard type bubble level with an interrogated digital slope meter and a visible laser beam and offers the following:
- Fast reaction time
- A stable display for improved accuracy
- Improved thermal stability
- Zero position re-set at any position
- Illuminated display
- Robust slope measurer
- Incorporated laser beam
Features:
- Inclination in degrees or percent
- Automatic digit inversion for overhead measurements
- Visible laser beam to extend working range
- Working range of measurement 4 x 90°
- 0° and 90° position of inclination
- Built-in horizontal-, vertical- and 45°- vials
- Hold-function to freeze measurement
- 1/4" thread for camera tripod
- Length 60 cm
Supplied with:
Specifications |
Working range |
4 x 90° |
Resolution |
0.1° / 0.1% |
Accuracy |
0° and 90° = +/-0.1° |
Accuracy |
1° -89° = +/-0.2° |
Measuring units |
°, %, mm/m, in/ft |
Working range laser |
20m |
Accuracy laser |
+/-0.5mm / 1m |
Wave length / laser class |
650nm / 2 |
Power supply |
3 x AA Alkaline Batteries |
Operating time |
without laser 50h, with laser 20h |
Temperature range |
-10°C - +45°C |
Weight (incl. batteries) |
0.86kg |
Size |
600 x 600 x 32mm |
|
