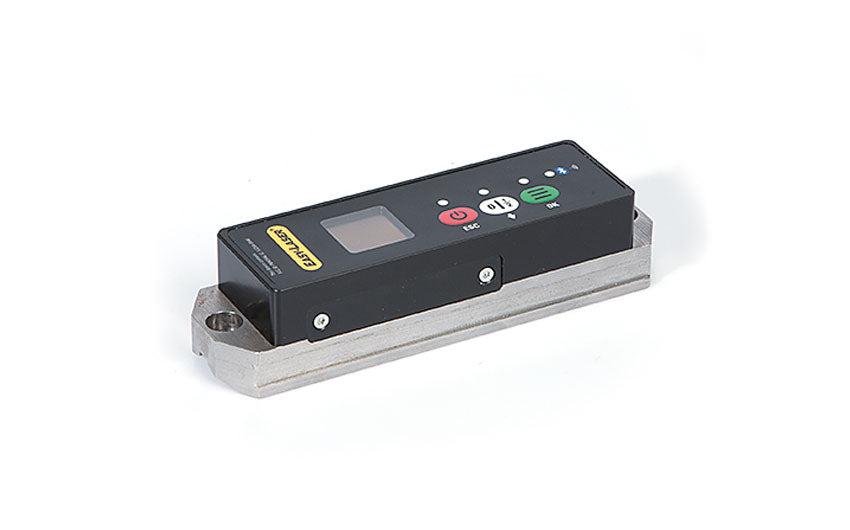

Easy Laser E290 Digital Level Kit
Easy Laser E290 Digital Level Kit
Easy Laser E290 Digital Level Kit
|
The Easy-Laser E290 now also offers the possibility of documenting the work, by wirelessly connecting to your Easy-Laser alignment system. Today, documentation is a common client requirement.
The Easy Laser E290 is the perfect addition to laser based alignment systems and is an investment that can be recouped quickly thanks to the broad areas of use.
Accuracy is guaranteed by the precision-ground, hardened steel base. Easy-to-read OLED display and a rechargeable battery make it easy to use. Two mounting holes allow for your own adaptions and fixtures.
|
|
Features:
- Clear OLED display
- Wireless connection
- IP class 67
- Built-in rechargeable battery
- Precision-ground prismatic base of hardened steel
- App available for iphone, ipad and ipod touch
|
 |
The precision level app is used together with the E290 Digital Precision Level. With this app your phone becomes a handy display unit which you can read off at the precise point where you adjust the machine. Climbing up and down on the machine several times to check the precision level value can now be reduced significantly. Available for iphone, ipad and ipod touch. |
 |
The E290 Precision Level has a clear OLED display with large figures and graphical indication of the angle direction. The value can be zeroed and halved. |
 |
The Level program for display unit E51* is used together with the E290 Digital Precision Level. A digital level is perfect for installation, setting up and maintenance of precision machines, levelling of machine tables, rolls, etc. - basically anything you can think of! *E51 is included with the E710/E720 and E9xx systems |
|
Specifications:
Resolution
Range
Measurement accuracy
Type of display
Communication
Environmental protection
Operating temperature
Internal battery
Material
Dimensions
Weight
|
0.01mm/m (0.001°)
+/- 2mm/m
Better than +/-0.02mm/m
OLED
BT wireless technology
IP Class 67
-10 - + 50°C
Li Po
Anodized aluminium, ABS plastics
WxHxD 149 x 40 x 35mm
530g
|
Kit includes:
Digital Precision Level
Manual on USB stick
Charger (100-240 V AC) with cable
Carrying case
Optional:
Legs for measurement on cylindrical surfaces with diameters larger than 55mm.
