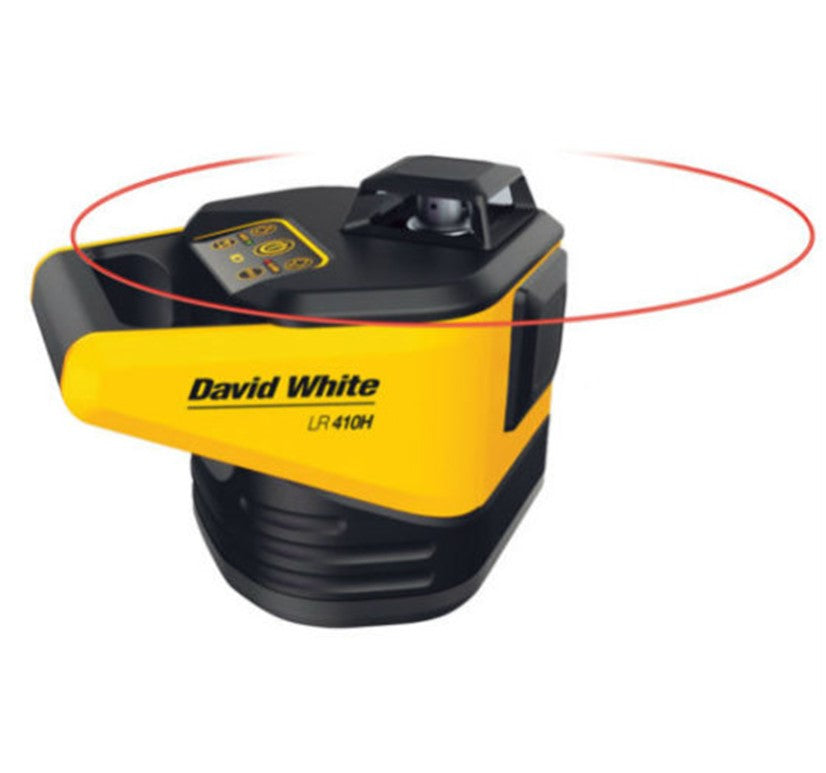

David White LR410H - Outdoor Laser Level

David White LR410H - Outdoor Laser Level

$1,298.00 AUD
$1,298.00 AUD $1,298.00 AUD
Sale Sold out

The David White SitePro ProNivo Tomi LR-410H is a simple horizontal rotary laser with electronic self-leveling technology. This laser is ideal for exterior elevation, levelling, and simple manual grade work.

Supplied with the German made Smart Detector

Features:

  • Compact, ergonomic design with single button operation
  • Extremely high rotation speed of up to 2'200 rpm projects perfectly visible lines(indoor application).
  • Integrated rotary head with built-in 635nm diode

Applications:

  • Leveling, checking elevations, concrete forms, footings, foundations
  • Estimating cut and fill
  • Installation of decks, pools, drop ceilings, floors
  • Excavating, digging footings, septic systems
Specifications
Beam Horizontal
Laser Diode 635 nm class 2
Accuracy
Horizontal Leveling  +/-1.8mm at 30m
Angle Accuracy N/A
Compensation
Self-Leveling Range +/-4º
Working Range
with Detector up to 350m Rad.
Functions
Slope/Tilt  Single Axis +/-4º
Scanning Yes
Height Alert Yes
Rotation Speed(s) 400, 800, 2200rpm
Power Supply 4x Cell Alkaline batteries
Environment IP55, Water/Dust Resistant
Dimension 8.5 x 6.0 x 6.2-in (215 x 150 x 156mm)
Weight (Laser only) 1.9kg
Warranty 2 Years





Features:

  • 3 accuracy levels ±1mm, 2mm & 3mm
  • Front and rear displays
  • Long range - 400m radius - Rotational
  • Range - Line 150m (Green) & 80m (RED)
  • Line Lasers up to 60m
  • Auto shut-off -18min
  • IP67 highest water/dust proof ratings
  • Magnet at top of receiver for steel profiles
  • Backlit display
  • Inbuilt level
  • Strong clamp system
  • 3 sound levels
  • 2 Year Warranty
  • Made in Germany




 Smart Detector PNLUD14 attached to heavy duty clamp (included)

Click here to download the PDF Brochure
