Lasertools

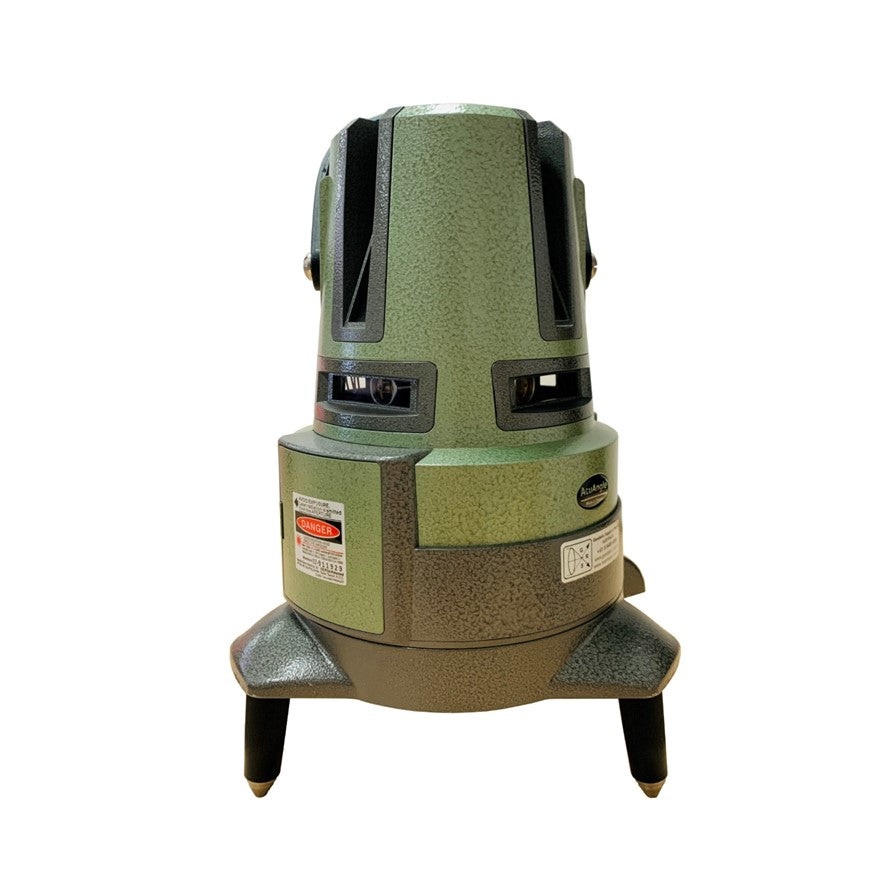

AcuAngle 9B Multiliner 4V4HID Laser Level

AcuAngle 9B Multiliner 4V4HID Laser Level

Regular price $220.00 AUD
Regular price Sale price $220.00 AUD
Sale Sold out

The AucAngle 9B Multiliner is a rare find for collectors and enthusiasts of vintage tools.

Perfect for anyone who appreciates antique or early generation technology.

The first Multiliner liner made in Taiwan, comes in the original sturdy metal case.

Features

  • Auto Levelling with magnetic dampening compensator
  • 9 beams (4x vertical, 4x horizontal, 1x down point)
  • Adopt the newest patent of twin system technology
  • Unique mechanism, Accuracy <20 second (1mm/10M)
  • 360° rotary base and micro-adjust button.
  • DC/AC two choices of power supply
  • Made in Taiwan.



Specifications

 Wave Length 635nm
Output power 1mW
Width of laser line 3mm/10m
Accuracy 1mm/10m
Square accuracy 1mm/10m
Repeat ability 0.5mm/10m
Time of stable Equilibrium <5 sec

Self-levelling range

+/- 3.5°
Working range Indoor: 10m, Outdoor: 50m with receiver
Continuous operating time 10 hours
Working temperature -10°C - +40°C
Power supply 2 sets of 3 pieces AA battery
Weight 1.98kg (with battery)
Dimensions Ø200mm x H 220MM
