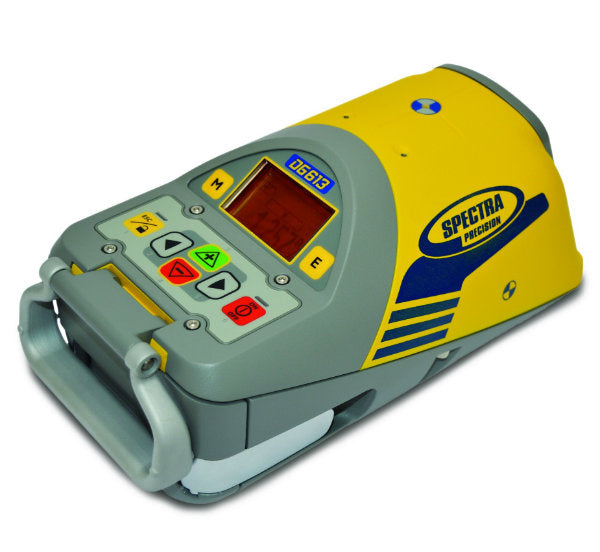

Spectra Trimble Pipe Laser DG613 - Red Beam

Features and Benefits: The compact and powerful Spectra Precision DG613 - Red Beam Pipe Laser is built for efficiency, accuracy and reliability when laying pipes. The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated – providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.

• New reduced length allows easy set-up even in tight inverts
• Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
• Self levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe it levels, you work.
• Bright visible beam that works up to 150m (500ft)
• IP68 protection (dust and waterproof)
• Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment at the first day even in short trenches
• Line Scan – provides a quick alignment to the center of the target for the second day setup
• Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
• RC803 remote works via radio 130m (430ft) or infra-red 150m (500ft) for both "over-the-top" set-up and in pipe/trench set-up.

The DG613 works over a distance of 150m (500ft) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For "over-the-top" setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet).

The DG613 has a bright beam that can be easily spotted in the pipe and enhanced with the patented target that bends the beam upwards making it easy to see when looking down at the pipe reducing the need to bend down to see the beam when in the trench or standing above the trench. Multiple attachments are available allowing the DG613 to be mounted in pipes of any size from 150mm (6 inch) upwards. A blower is also available to evenly circulate air through the pipe to avoid refraction of the beam inside the pipe.

Applications

• Installation of gravity flow sanitary pipelines
• Storm sewer pipelines
• Pipe jacking
• Can be used in a pipe or in "Over the Top" set-ups

Package includes Trivit Plate RC803 Radio Remote Control Target Batteries & Charger

Trivit Plate
