Spectra Precision LR30W with RD20 Remote Display
Spectra Precision LR30W with RD20 Remote Display
Pickup available at 7 Prindiville Drive
Usually ready in 2-4 days

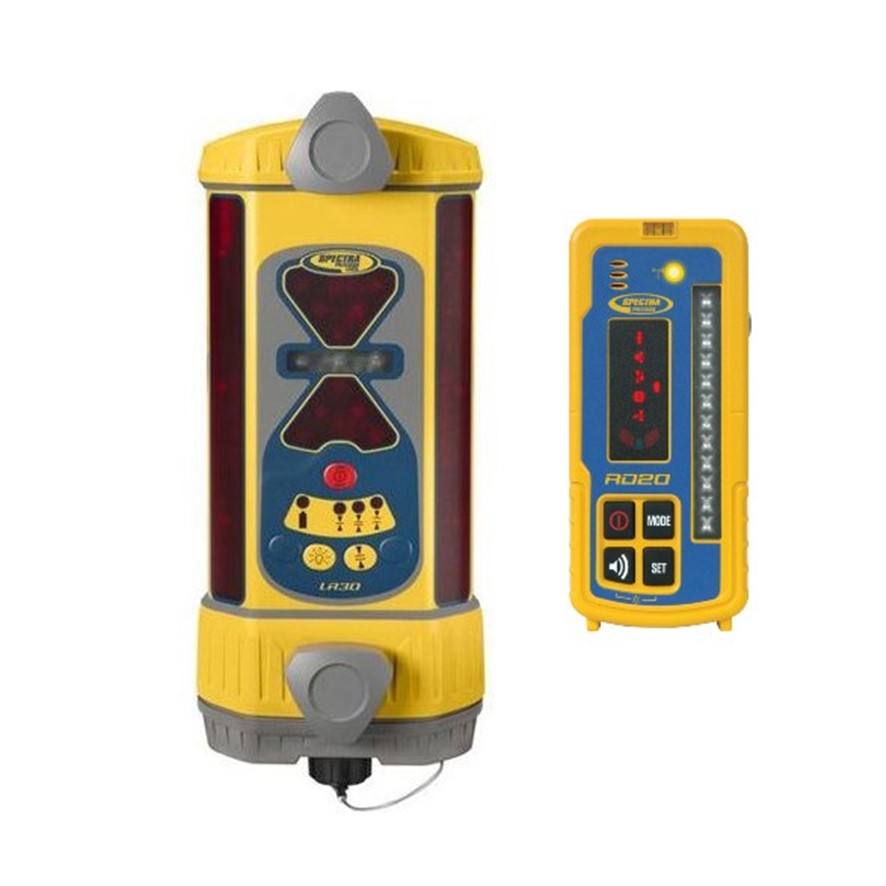

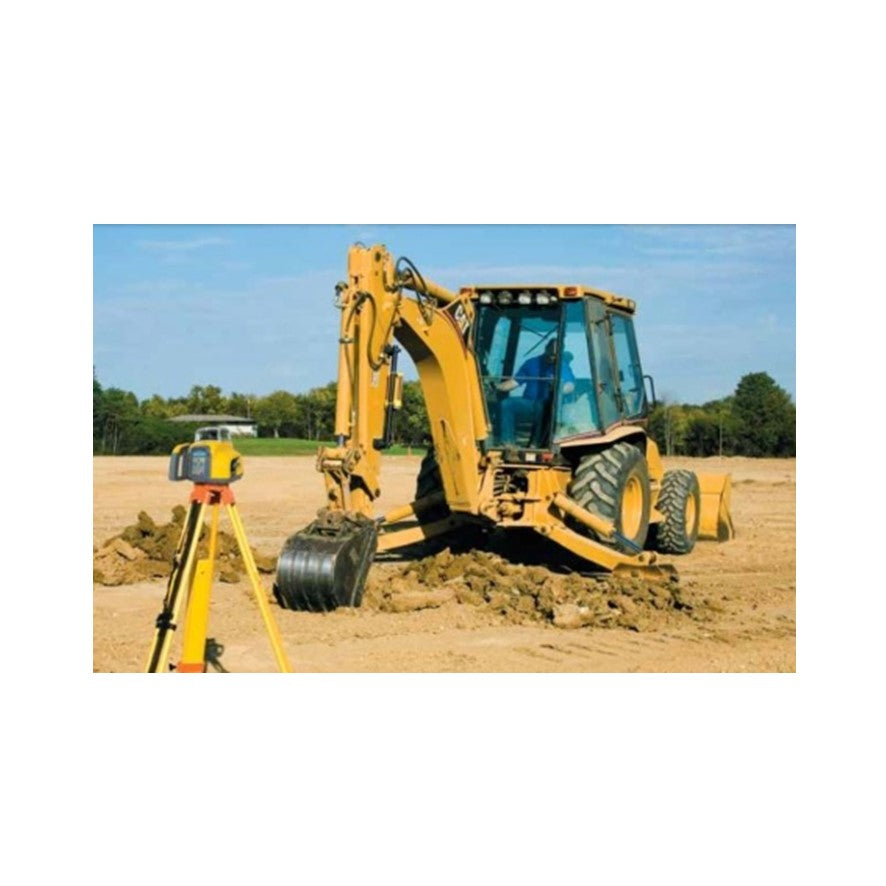

The Spectra LR30W Laser Machine Control Receiver & RD20 Remote Display are designed to be used as a stand-alone display receiver on grading and excavating equipment including; dozers, backhoes, excavators, scrapers, skid-steers, and levellers.
The versatile, easy to use LR30W features 360-degree laser detection and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR30W receiver withstands all weather environments. Internal isolating shock mounts protect the electronics. The LR30W is designed to work with the RD20 Remote Display.
Features
- Five channels of grade information plus directional out-of-laser beam indicator directs which way to move and get back in the beam.
- Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility.
- Full 360-degree reception picks up the laser from all directions.
- Adjustable ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions.
- Links wirelessly to the RD20 in-cab display.
| Specifications | |
| Number of Display Channels | 5-Channel Display |
| Accuracy: Centre on grade mode (grading) | Fine: 5mm, Standard: 12mm, Wide: 32mm |
| Accuracy: Offset on grade mode (excavating) | N/A |
| ACE - Angle Compensation Mode | N/A |
| Blade - Tilt Accuracy | N/A |
| Plumb - Swing Accuracy | N/A |
| Vertical Reception | 171 mm |
| LED Battery Life | |
| Alkaline Bright/Dim | 75 hours |
| Wireless with Remote on | 40 hours |
| Ni-MH Bright/Dim | 50 hours |
| Wireless with Remote on | 30 hours |
| Receiver Warranty | 2 Years |
Includes:
- LR30W Receiver
- RD20 Remote
- NiMH batteries
- Operating Manual
- Carry Case
Spectra Precision LR30W Receiver pdf brochure
Wish to add the Spectra MM-1 Magnetic Mount?
