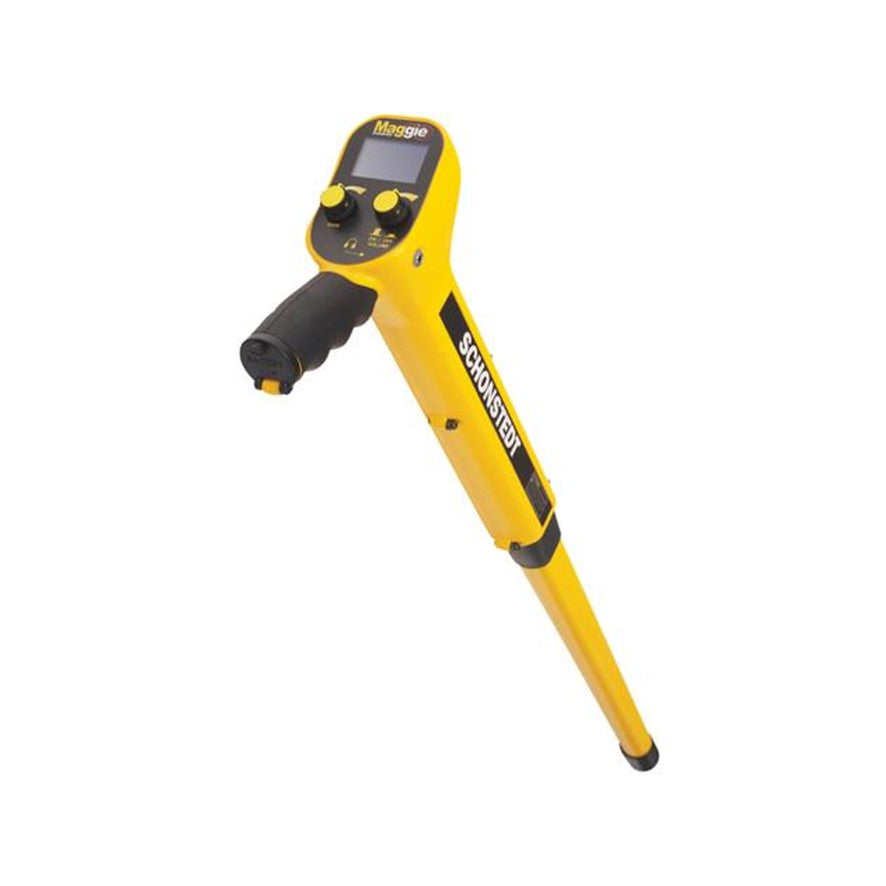

Schonstedt Maggie Magnetic Locator
Schonstedt Maggie Magnetic Locator
Regular price
$2,035.00 AUD
Regular price
$2,035.00 AUD
Sale price
$2,035.00 AUD
Unit price
per
Couldn't load pickup availability
The Schonstedt Maggie Magnetic Locator combines the best features of two flagship Schonstedt products: the sensitivity and precision of the GA-52Cx, and the single-handed operation of the GA-92XT
Schonstedt Engineers went back and took user input over the years and come up with features like an easy way to hold their popular 52Cx model and installed a handle on it. Users did not like opening up the 52Cx exposing the electronics just to replace the battery (The Maggie's handle is where the battery is installed and the electronics are not exposed during a battery change).
Maggie Features:
- Highest Sensitivity
- Ergonomic & Durable
- Dust & Water Resistant (Rated IP54)
- Easy access battery removal
- Expanding bar graph indicates polarity (positive or negative) and
relative signal strength
- HeliFlux sensors
- Modular construction and high performance components
- Includes a soft-case and sling for ease of carrying through rough terrain,
hands-free
- 7-year warranty
Applications :
Military & Munitions Response, Surveying, Construction & Excavation, Contract Locating, Facilities Management, Gas & Oil Pipelines, Public Works, Residential & Commercial, Utilities, Water & Sewer, Cable, Electrical Power & Transportation.
Schonstedt Magnetic Locators - Find it all underground:
Cast or Ductile Iron Pipes, Corner Markers, Curb & Valve Boxes, Steel Enclosures, Mag & PK Nails, Manhole Covers, Marker Magnets, Reinforced Septic Tanks, Steel Pipes, UXO, Well Casings and more.
Maggie Specifications:
| Audio output |
Signal increases in frequency with gradient field intensity. Idle
frequency = 10 Hz.
|
| Display output |
Expanding bar graph indicates polarity (positive or negative) and
relative signal strength.
|
| Battery Indicator | 4-segment LCD |
| Gain | 4-Level LCD – Low (L), Medium (M), High (H), Extra High (XH) |
| Gain memory | Gain defaults to Medium when powering off/on |
| Volume | 3 Levels: Muted, Medium, and High |
| Input Power | One 9V Battery |
| Battery Life | 24 Hours (intermittent use) |
| Operating Temperature | -25°C to 60°C |
| Overall Length | 83cm |
| Normal sensor spacing | 50cm |
| Weight | Approximately 1.2 Kg |
| Construction | High impact ABS |
| Dust & water protection | Rated IP54 |
|
Schonstedt Maggie Magnectic Locator kit includes: Padded Carrying Case with strap 1 x 9V Alkaline Battery |
Please click here to download the Schonstedt Maggie Magnetic Locator Brochure
