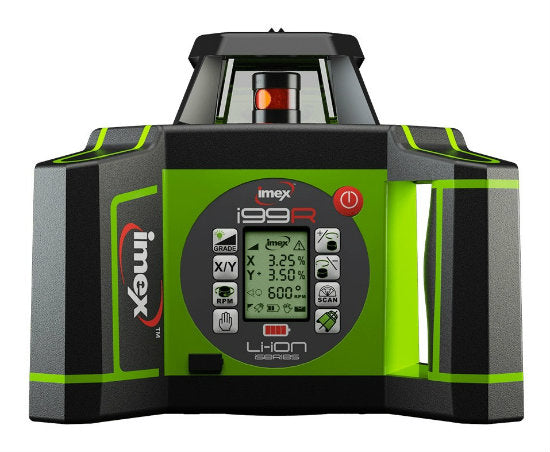

Imex i99R Dual Grade Laser Level with Laser Receiver LRX10

Imex i99R Dual Grade Laser Level with Laser Receiver LRX10

Regular price $2,860.00 AUD
Regular price $2,860.00 AUD Sale price $2,860.00 AUD
Sale Sold out
 More payment options

Discontinuedclick here for the NEW Z99R Dual Grade Laser Level

The new Imex i99R Laser Level offers everything that the contractor and tradesman need in a rotating laser level. The auto dial in grade allows for a % or slope to be dialed-in using the simple remote keypad for fast set-up and total job control. Combined with this is the rugged construction and high-visibility casing giving extra water and dust proofing for all site conditions.

Features:

  • 600m Diameter range, +/- 1.5mm over 30m Accuracy
  • Self-levelling, resets if bumped or moved
  • 9Ah lithium-ion battery - approx. 40 hours run time
  • USB quick charge port with car charger
  • LRX10 Digital Detector in mm reading (German made)
  • 90mm Detector reading the ultrafine, fine, medium, coarse and ultra coarse
  • Fast and accurate set-up time, resets if a unit is bumped or moved
  • Remote Control Panel - allows grade or other functions to be carried out up to 20m away from the instrument, for true one-man operation and greater efficiency
  • Hi-Visibility Case - unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped or run over, increasing safety and accuracy
  • Plumb Spot - Top and bottom plumb spot beam to assist in set-ups over a point
  • Horizontal/Vertical - Dual function, the instrument works in the horizontal plane or vertical plane when turned on its side. Invaluable for set-out, alignment, point transfer or interior set-outs
  • Scan Mode - Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present
Specifications
Self-levelling Range +/- 5°
Working Distance 600m Diameter
Function Horizontal / Vertical
Scan Mode Yes, 0°, 10°, 45°, 90°, 180°
Slope Mode Yes - Auto dial in dual grade to 10%
Accuracy 1.5mm @ 30m
Rotation Speeds 0, 60, 120, 300, 600rpm
Waterproof Shockproof IP66
Light Source Red diode 635nm Class II
Power 9 Ah 3.7v lithium-ion
Detector LRX10 double sided
Working time Continous use 40hrs approx red
Charging Time 4 hours in the unit or removed from the unit
USB Charging  Yes, including a 12v car charger
High Wind Sensitivity Reset Yes
Remote Control Yes, iCR9
Weight (Unit only) 2.5kg
Detector - Pick up 90mm -30mm to +60mm
Detector Reading Ultrafine - 0.5mm, Fine - 1.0mm, Medium - 2.0mm, Coarse - 5.0mm,Ultra Coarse - 10.0mm
Detector Power 1-AA > 50 hrs run
Warranty 5 years
 Imex Dual Grade Laser i99

Included in Package:

  • Dual Grade Rotating Laser
  • LRX10 Detector
  • Remote Control Unit
  • USB Cable
  • 9.0 Ah Lithium Battery
  • Car Charger
  • Target Plate
  • Hard Carry Case
