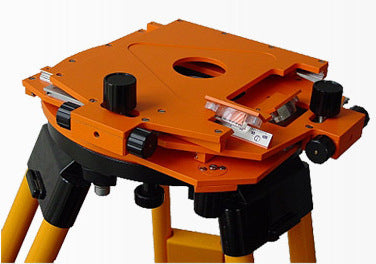

FPM FG-KT100 Large X-Y Shifting Table
FPM FG-KT100 Large X-Y Shifting Table
The large X-Y FG-KT100 can be used for the exact positioning of instruments above or under reference points.
Application:
- The rotatable XY positioning platform can be used to align the surveying instrument parallelly to the pattern of a target plate.
- Horizontal movement in the X and Y directions, positioning accuracy up 0.1mm
Example of use:
-
Erection of high-rise buildings and mine shafts, smokestacks, bridges and steel constructions
-
Special measurement tasks in industrial surveying and mine surveying
-
Monitoring deformation processes of large buildings
| Specifications | |
| Range of motion X axis | +/- 50mm, with locking mechanism for the axis |
| Range of motion Y axis | +/- 50mm, with locking mechanism for the axis |
| Fine-tuning for X axis | +/- 10mm |
| Fine-tuning for Y axis | +/- 10mm |
| Scale division | 1mm |
| Setting accuracy | 0.5mm |
| Reading | 1mm, with magnifying glass |
| Reading estimation | 0.1mm |
Accessories:
Special Tripod with large tripod head
Wall support FG-MAS II
