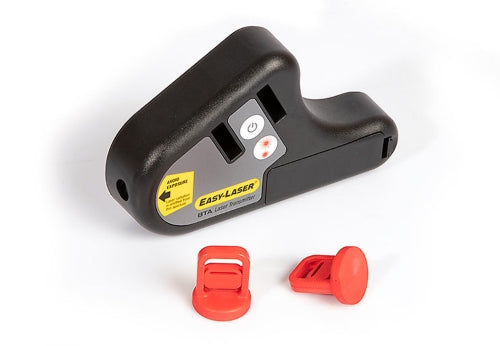

Easy Laser D92 BTA Belt Alignment Tool
Easy Laser D92 BTA Belt Alignment Tool
The Easy Laser D92 BTA is the perfect tool for sheave and pulley alignment. Mounted in a few seconds the laser line projected onto the targets allows you to quickly ascertain and correct the misalignment. It could not be easier.
The Easy-Laser D92 BTA is attached to the side of the sheave/pulley and not to the belt groove.
This means it is just as easy to adjust v-belt, flat belt and timing belt pulleys as chain wheels.
The clever design of the anchor plate/reference surface ensures hassle-free alignment of both large and small sheaves/pulleys.

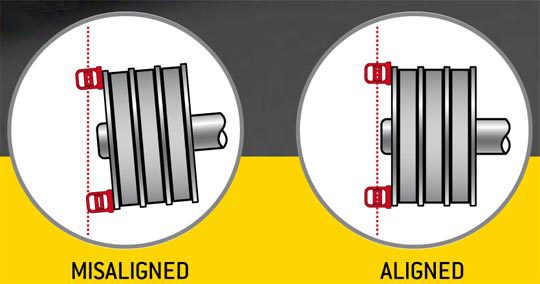

• Shows the parallel and angular misalignment between the sheaves.
• Much faster and more accurate than measuring with earlier, conventional methods.
• For both horizontal and vertical mounted machines.
• Alignment can be made by one operator.
• Also suitable for non-magnetic sheaves.
• Fits almost any kind of sheave: v-belts, flat belts, timing belts, chain drives.
